Trailer Mounted Drill Rigs


REQUEST-A-QUOTEPRODUCT CATALOGSIGN UP FOR
PRODUCT UPDATES


Rubber Tire ATV Mounted Drills  |  Truck Mounted Drills  |  Track Carrier Mounted Drills  |  Trailer Mounted Drills  |  Skid Mounted Drills



CME-45B Trailer Mounted Auger Drilling Rig

CME-45B


The CME-45B is an economical, efficient drill that can be mounted on a CME 55BT trailer in addition to trucks and ATV carriers. Power is provided by a Cummins tier-4f diesel engine. Available optional equipment includes in-out and sideways slide bases, automatic SPT hammer, direct push hammer, hydraulic rod holder and break-out wrench, a variety of hoists and water pumps. It can easily be set up for pavement coring as well.
45B Features  |  45B Specifications  |  45B Optional Equipment

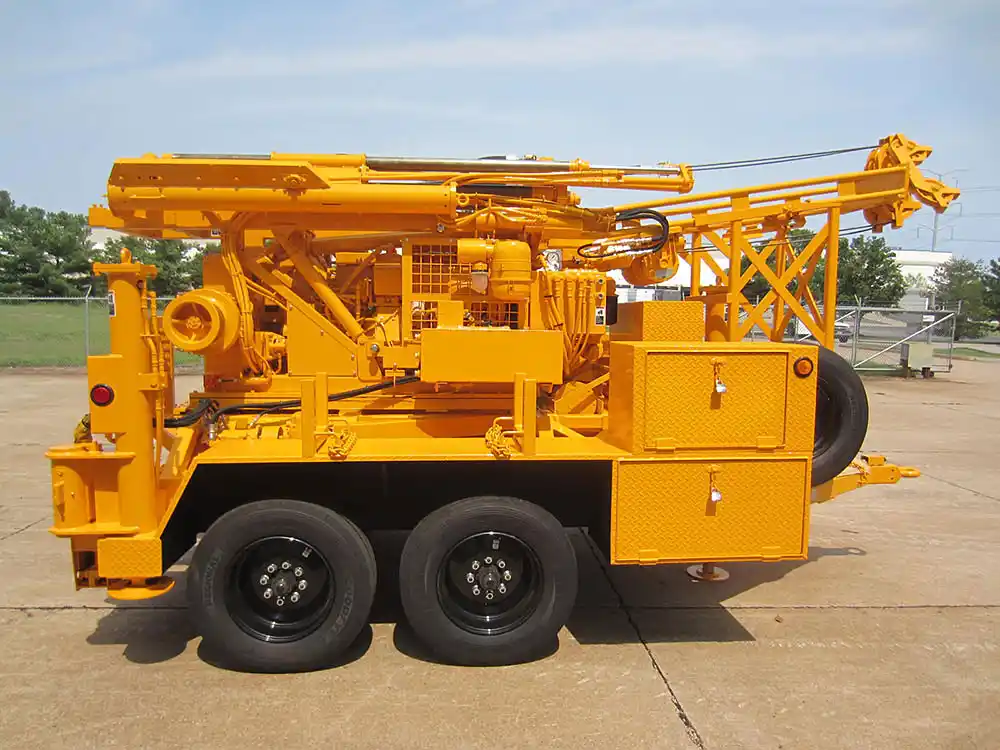

CME-45C Trailer Mounted Auger Drill Rig

CME-45C


CME-45C skid/trailer units have been popular in mountainous regions and congested urban areas for almost 50 years. It is another example of the versatility of the CME-45C. With the rig secured to the trailer, it is easily mobilized and ready to drill. In limited access situations, the skid drill can be removed from the trailer using the ramps provided with the CME trailer.
45C Features  |  45C Specifications  |  45C Optional Equipment


CME-55 Trailer Mounted Auger Drilling Rig

CME-55


The trailer mounted CME-55 is just another variation of the drill that has been the standard of its class for more than 55 years. The popularity and high resale value of this classic machine bear testimony to its performance record in the field. With 28,275 pounds (12,825 kg) of retract force and up to 9,425 foot pounds (12,778 Nm) of rotary torque, the CME-55 is capable of drilling holes up to 14 inches (36 cm) in diameter using hollow stem augers.
55 Features  |  55 Specifications  |  55 Optional Equipment




CME-55LC Trailer Mounted Auger Drill Rig

CME-55LC


The CME-55LC with its unique feed and retract system can also be mounted on the CME-55T trailer. The quick disconnect mast and low clearance sheaves allow you to work under service station canopies, bridges or other overhead restrictions with the power and productivity of a full-sized CME-55. The optional SPT hammer even has a separate valve for lifting the hammer when working in the low clearance mode that restricts the height that the hammer can be raised.
55LC Features  |  55LC Specifications  |  55LC Optional Equipment



CME-55LCX Trailer Mounted Auger Drill Rig

CME-55LCX


The CME-55LCX offers easy low clearance conversion, just like the CME-55LC but also goes to the next level in power. A Cummins tier-4f power unit with 130 horsepower delivers nearly 12,000 foot pounds (16,200 Nm) of torque to the drill spindle.
55LCX Features  |  55LCX Specifications  |  55LCX Optional Equipment





CME Trailer Mounted Auger Drills
  45B 45C 55 55LC 55LCX
Standard Rotary Box
Rotational Speed (max) 760 rpm 760 rpm 800 rpm 800 rpm 600 rpm
Rotary Torque (max) 3,530 ft lbs
(4,785 Nm)
3,530 ft lbs
(4,785 Nm)
7,780 ft lbs
(10,545 Nm)
7,780 ft lbs
(10,545 Nm)
11,950 ft lbs
(16,200 Nm)
High Torque Rotary Box
Rotational Speed (max) 550 rpm 550 rpm 665 rpm 665 rpm N/A
Rotary Torque (max) 4,850 ft lbs
(6,575 Nm)
4,850 ft lbs
(6,575 Nm)
9,425 ft lbs
(12,775 Nm)
9,425 ft lbs
(12,775 Nm)
N/A
Feed System
Pull Down Force 13,650 lbs
(6,190 kg)
13,650 lbs
(6,190 kg)
18,650 lbs
(8,460 kg)
19,750 lbs
(8,959 kg)
19,750 lbs
(8,959 kg)
Retract Force 19,600 lbs
(8,890 kg)
19,600 lbs
(8,890 kg)
28,275 lbs
(12,825 kg)
27,615 lbs
(12,526 kg)
27,615 lbs
(12,526 kg)


pdf Print Table
Performance ratings are based on engineering specifications, calculations and accepted industry standards.
Capacities may vary according to drilling conditions. CME reserves the right to amend these specifications at any time, without notice.
