CME-45C
This is one of our most versatile drill rigs. With 19,600 pounds (8,891 kg) of retract force and up to 4,858 foot pounds (6,587 Nm) of rotary torque the CME-45C can be configured to fit your specific needs.
45C Features
45C Specifications
45C Optional Equipment

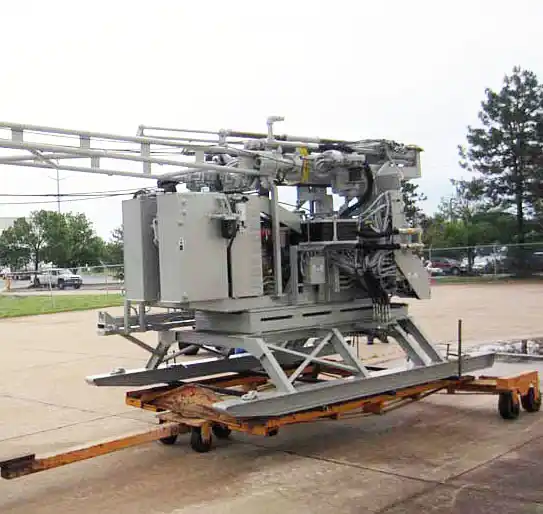

CME-55
Special purpose CME-55 skid rigs are available with spindle torque up to 9,425 ft/lbs (12,778 Nm) or spindle speeds up to 800 rpm. These are self-contained rigs on CME designed steel skid frames. They can be fully equipped with CME automatic hammer, hydraulic rod and break-out wrench systems, several hoist lines and water pump systems to efficiently handle your barge work or limited access sites.
55 Features
55 Specifications
55 Optional Equipment
| Skid-Mounted Drills | ||
|---|---|---|
| CME-45C | CME-55 | |
| Standard | ||
| Rotary Torque (max) | 3,530 ft/lbs (4,786 Nm) |
7,963 ft/lbs (10,796 Nm) |
| Rotary Speed (max) | 760 rpm | 868 rpm |
| High Torque | ||
| Rotary Torque (max) | 4,875 ft/lbs (6,609 Nm) |
10,410 ft/lbs (14,114 Nm) |
| Rotary Speed (max) | 550 rpm | 664 rpm |
| High Speed | ||
| Rotary Torque (max) | N/A | N/A |
| Rotary Speed (max) | N/A | N/A |
| Feed System | ||
| Retract Force | 19,600 lbs (8,890 kg) |
28,275 lbs (12,825 kg) |
| Pull Down Force | 13,650 lbs (6,192 kg) |
18,650 lbs (8,459 kg) |
| Mounting Applications | Skid, Truck, Trailer, Skid on Trailer, ATV | Truck, Trailer, ATV, Skid |
Print Table
Performance ratings are based on engineering specifications, calculations and accepted industry standards.
Capacities may vary according to drilling conditions. CME reserves the right to amend these specifications at any time, without notice.
